Specifications

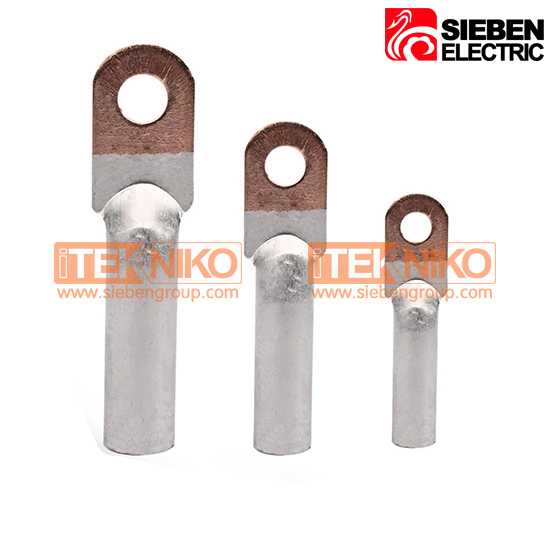

Item No. | Φ | D | D | L | L1 | B |
DTL-1-10 | 8.5 | 10 | 5.7 | 65 | 28 | 16 |
DTL-1-16 | 8.5 | 11 | 6 | 70 | 30 | 16 |
DTL-1-25 | 8.5 | 12 | 7 | 75 | 33 | 18 |
DTL-1-35 | 10.5 | 14 | 8.5 | 83 | 38 | 20.5 |
DTL-1-50 | 10.5 | 16 | 9.8 | 90 | 40 | 23 |
DTL-1-70 | 12.5 | 18 | 11.6 | 102 | 47 | 26 |
DTL-1-95 | 12.5 | 21 | 13.8 | 112 | 48 | 28 |
DTL-1-120 | 14.5 | 23 | 15.5 | 119 | 52 | 30 |
DTL-1-150 | 14.5 | 25 | 16.5 | 126 | 53 | 34 |
DTL-1-185 | 16.5 | 27 | 18.5 | 133 | 57 | 37 |
DTL-1-240 | 16.5 | 30 | 21 | 141 | 60 | 40 |
DTL-1-300 | 21 | 34 | 23.5 | 165 | 67 | 50 |
DTL-1-400 | 21 | 38 | 26.5 | 178 | 76 | 55 |
DTL-1-500 | 21 | 45 | 29.2 | 200 | 85 | 60 |
DTL-1-630 | - | 54 | 35 | 245 | 80 | 80 |
DTL-1-800 | - | 60 | 38 | 270 | 90 | 100 |

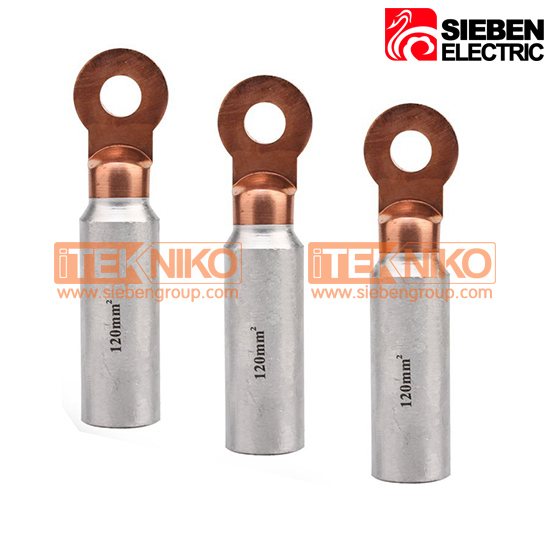

Item No. | Φ | D | D | L | L1 |
DTL-2-16 | 13 | 16 | 5.5 | 87 | 42 |
DTL-2-25 | 13 | 16 | 6.5 | 87 | 42 |
DTL-2-35 | 13 | 16 | 8 | 87 | 42 |
DTL-2-50 | 13 | 20 | 9 | 87 | 43 |
DTL-2-70 | 13 | 20 | 11 | 87 | 43 |
DTL-2-95 | 13 | 20 | 12.5 | 87 | 43 |
DTL-2-120 | 13 | 25 | 13.5 | 111 | 60 |
DTL-2-150 | 13 | 25 | 15.5 | 111 | 60 |
DTL-2-185 | 13 | 32 | 17.5 | 116 | 60 |
DTL-2-240 | 13 | 32 | 19.5 | 116 | 60 |
DTL-2-300 | 13 | 34 | 22.5 | 120 | 62 |
