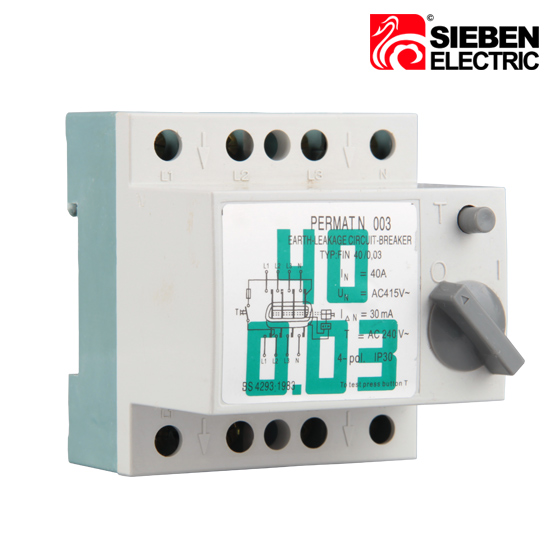

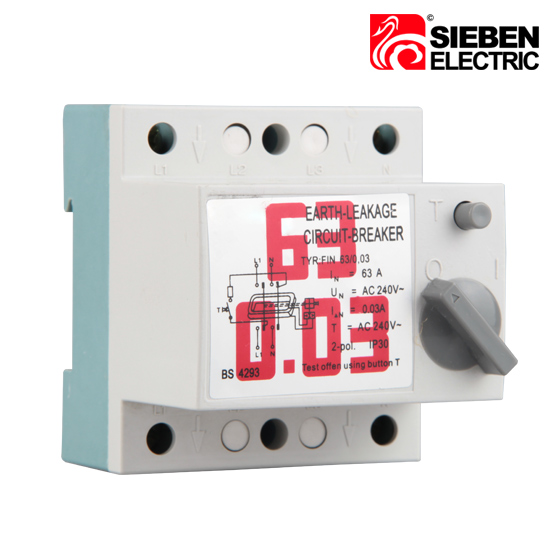

Construction & Features

○Protection against both earth fault/leakage current and function of isolation

○High short-circuit current withstand capacity

○Applicable to terminal and busbar connection

○Auto disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity

○Easy mounting onto 35mm din rail

○Independent of power supply and line voltage, and free from external interference, voltage fluctuation

Features

○Model type: Electronic, Electro-magnetic

○Residual current characteristics: A, AC

○Pole no.: 2, 4

○Rated voltage: AC 240/415V

○Rated current(A): 16, 25, 40, 63

○Rated residual operating current I△n(A): 0.03, 0.1, 0.3, 0.5

○Rated residual non-operating current I△no: 0.5I△n

○Rated conditional short-circuit current Inc: 6kA

○Rated conditional residual short-circuit current I△c: 6kA

○Rated frequency: 50/60Hz

○Tripping duration: Instantaneous tripping ≤0.1s

○Residual tripping current range: 0.5I△n~10I△n

○Electro-mechanical endurance: 6000 cycles

○Connection terminal: Screw or pillar terminal with clamp

○Connection capacity: Rigid conductor upto 25mm²

○Fastening torque: 2.0Nm

○Installation: On symmetrical 35mm din rail or panel mounting

○Terminal connection height: 19mm

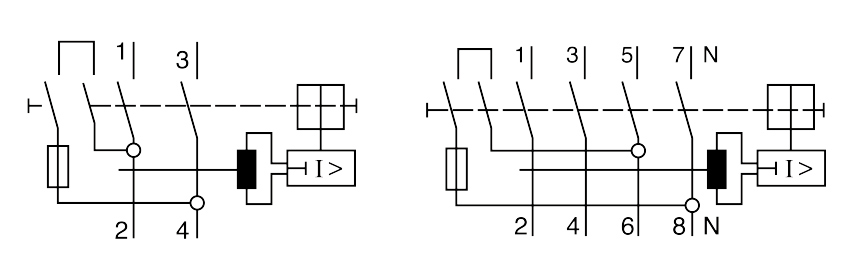

Wiring Diagram

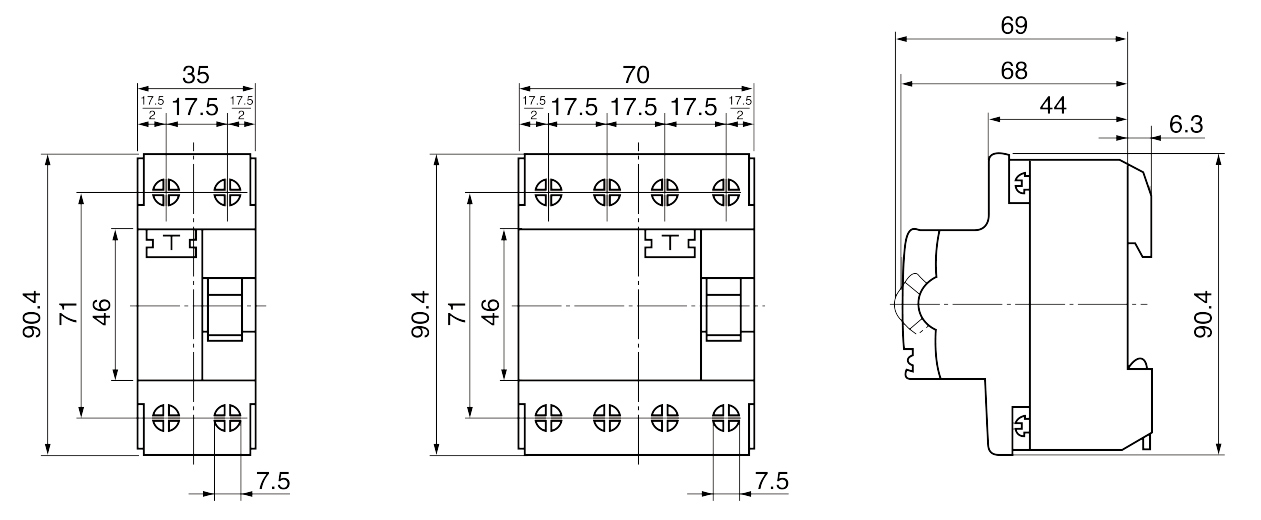

Overall & Installation Dimensions
