Specifications

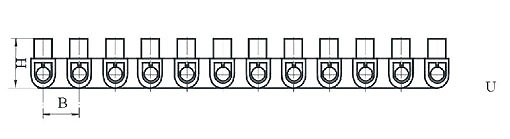

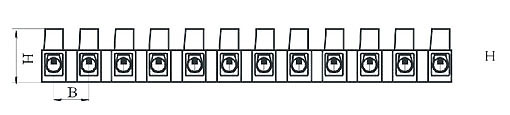

Type: H, U
Material:ade from PA,PE or PP.
Current | Cable Size | Pole No. | Volt. | L | A | H | W | B | Packing |
3A | 2.5 | 12 | 400V | 93 | 16 | 12 | 6 | 8 | 10PCS |
6A | 6 | 12 | 400V | 115 | 15.7 | 13 | 6.5 | 9.5 | |
10A | 10 | 12 | 400V | 126 | 20.2 | 15.5 | 8.4 | 10.5 | |
15A | 12 | 12 | 400V | 139 | 23 | 17.7 | 10.3 | 12 | |
20A | 14 | 12 | 400V | 155 | 25 | 19.2 | 11.5 | 13.5 | |
30A | 16 | 12 | 400V | 171 | 26 | 20.5 | 12 | 14.5 | |
60A | 25 | 12 | 400V | 192 | 30 | 26 | 13.5 | 16.5 | |
80A | 30 | 12 | 400V | 205 | 33 | 27 | 15 | 17 | |
100A | 35 | 12 | 400V | 250 | 46 | 31 | 22 | 21 | |
150A | 40 | 12 | 400V | — | — | — | — | — |
