Application

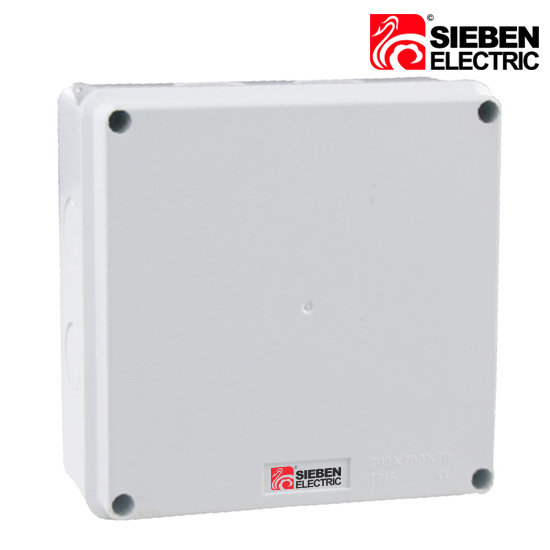

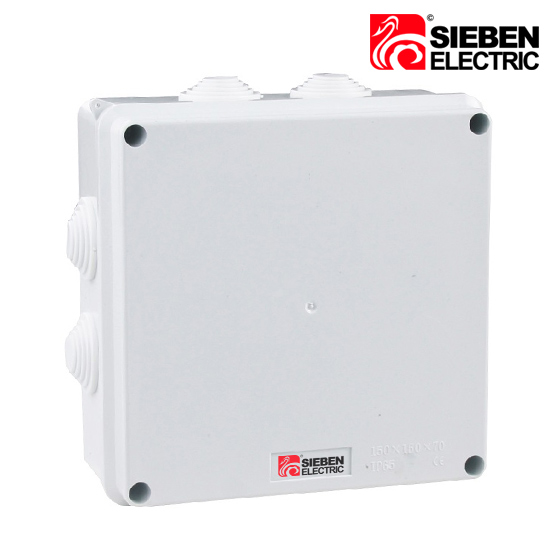

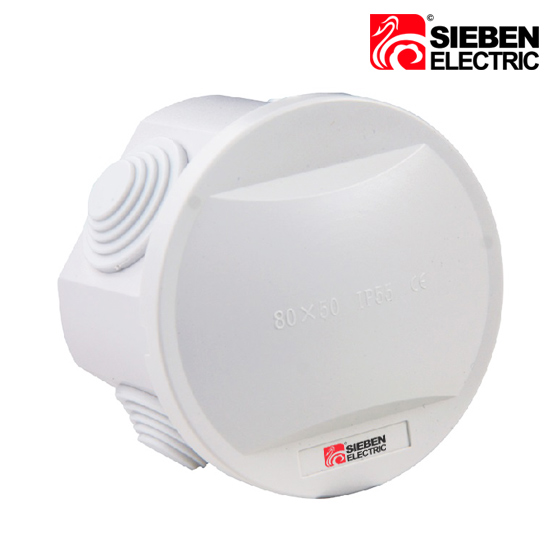

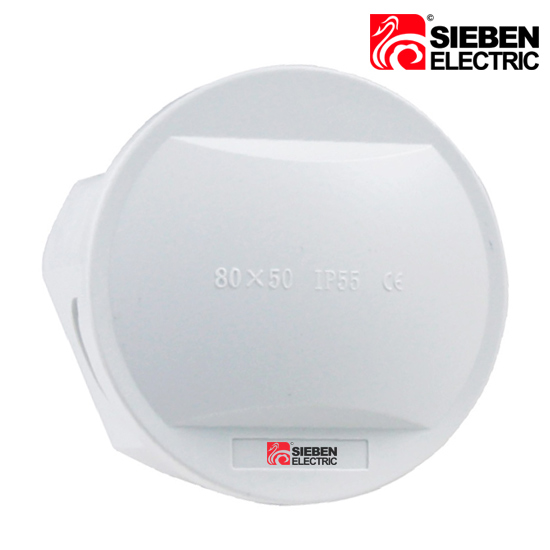

JTA series waterproof junction box is suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, power system, railway, building, mine and so on.
Its material is with impact, heat, low temp and chemical resistance, excellent electrical performance and surface gloss, etc.
Specification
○Material: ABS(body), PVC(stopper).
Model Code | Hole Qty. | Hole Size (mm) | IP | Pcs/Carton |
JTA-5050 | 4 | 25 | 55 | 300 |
JTA-8050 | 4 | 25 | 55 | 240 |
JTA-858550 | 7 | 25 | 55 | 200 |
JTA-10010070 | 7 | 25 | 65 | 100 |
JTA-15011070 | 10 | 25 | 65 | 60 |
JTA-15015070 | 8 | 25 | 65 | 60 |
JTA-20010070 | 8 | 25 | 65 | 60 |
JTA-20015580 | 10 | 36 | 65 | 40 |
JTA-20020080 | 12 | 36 | 65 | 40 |
JTA-25520080 | 12 | 36 | 65 | 40 |
JTA-255200120 | 12 | 36 | 65 | 30 |
JTA-300250120 | 12 | 36 | 65 | 20 |
JTA-400350120 | 16 | 36 | 65 | 10 |
