Description

○Protection against both overload and short circuit

○Use in domestic, commercial and light industrial installations

○Plug-in mounting base

Features

○Pole no.: 1, 2, 3

○Body Material: Bakelite

○Rated voltage: AC 120/240, 240/415V

○Rated current(A): 15, 20, 30, 40, 50

○Rated short-circuit capacity(Icn): 6kA

○Rated frequency: 50/60Hz

○AIC rating: 10000 RMS SYM

○Connection terminal: Pillar type terminal

○Mounting: Clips pan assembly base

○Conforms to IEC 60898, UL 489

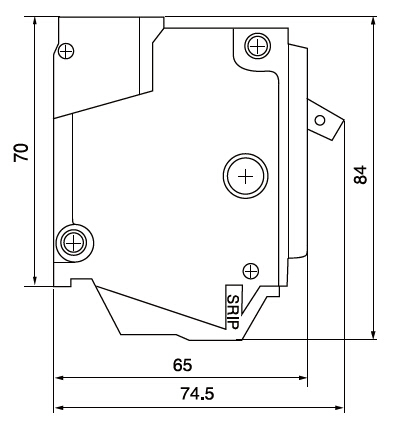

Overall & Installation Dimensions
