Products

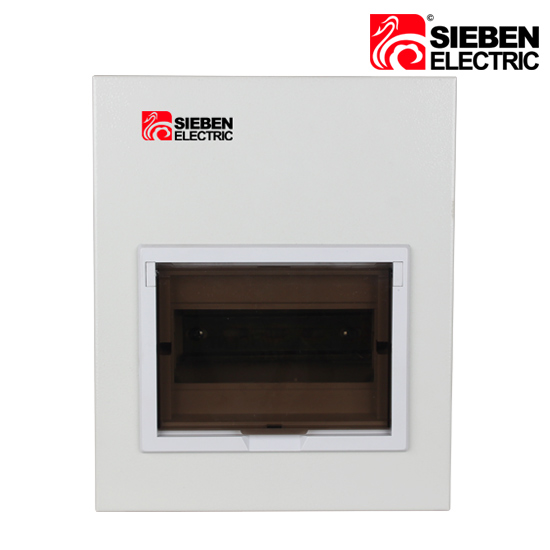

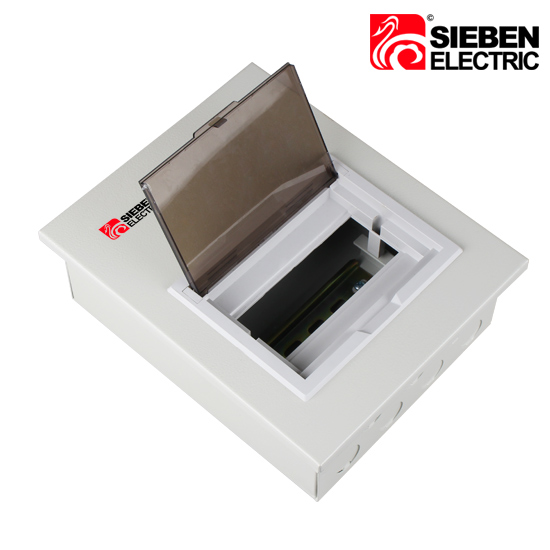

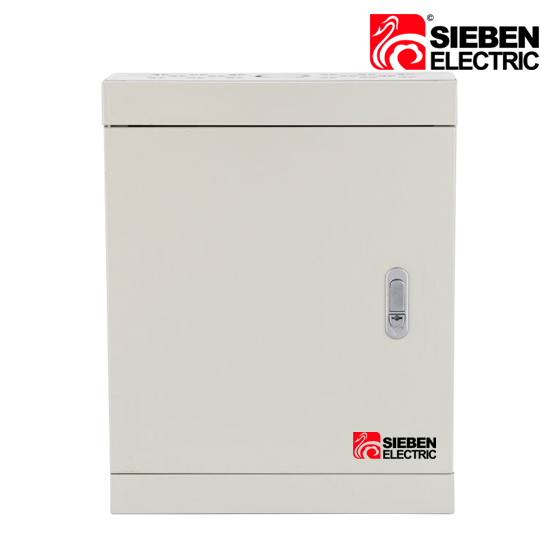

Metal Distribution Box

Application

MDC series metal distribution boxes are designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. The are available in DIN-rail designs for indoor applications.



Features

○Made out of high quality steel sheet.

○Matt-finish polyester powder coated paint.

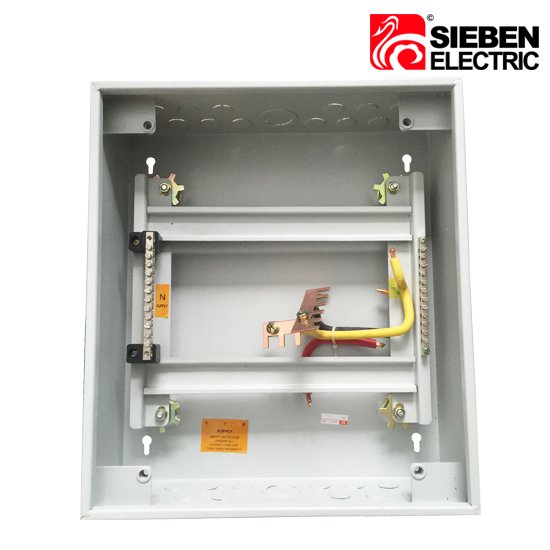

○Knockouts provided on the top, bottom and back of the enclosure.

○Suitable for rated voltage 230/415V.

○Flush and surface mounted designs.

○Wider enclosure offers easy wiring and heat dissipation.



Specifications

Model Code

Phase

Way No.

Incoming

Outgoings

Body Thickness

(mm)

Mounting

Type

Poles

Rated Current

MDC-1107

Single

7

2P 100A

5

1~63A

0.8 or 1.0

Horizontal

Din Rail

MDC-1110

10

8

MDC-1114

14

12

MDC-1304

Three

4

3P or 4P

160A

12

1.0 or 1.2

Vertical

Bus Bar

MDC-1306

6

18

MDC-1308

8

24

MDC-1312

12

36
