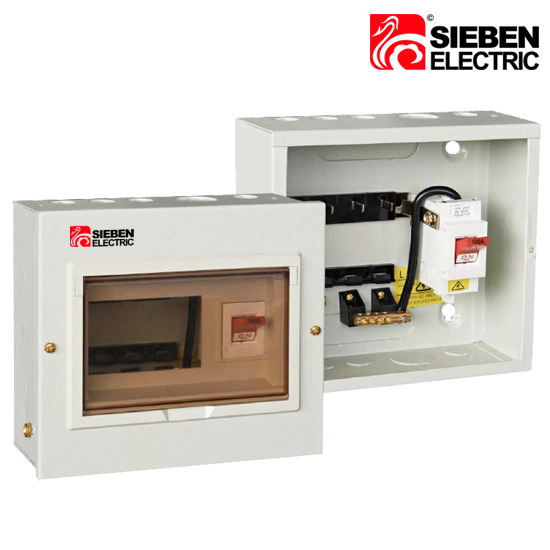

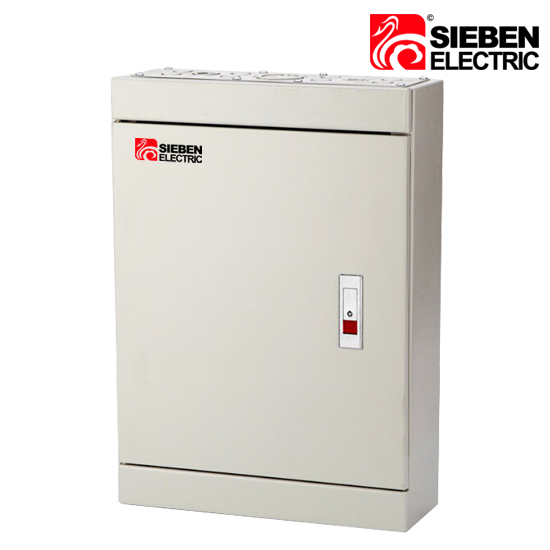

    Metal Distribution Box

    Application

    MDF series metal distribution boxes are designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. The are available in Plug-in designs for indoor applications.



    Features

    ○Made out of high quality steel sheet.

    ○Matt-finish polyester powder coated paint.

    ○Knockouts provided on the all sides of the enclosure.

    ○Suitable for rated voltage 120V/230V, 230/415V.

    ○Flush and surface mounted designs.

    ○Wider enclosure offers easy wiring and heat dissipation.



    Specifications

    Model Code

    Phase

    Way No.

    Incoming

    Outgoings

    Body Thickness

    (mm)

    Mounting

    Type

    Poles

    Rated Current

    MDF-1104

    Single

    4

    2P 100A

    4

    6~60A

    0.8 or 1.0

    Horizontal

    Plug-in Plastic Base

    MDF-1106

    6

    6

    MDF-1108

    8

    8

    MDF-1112

    12

    12

    MDF-1304

    Three

    4

    3P

    100A

    12

    1.0 or 1.2

    Vertical

    Bus Bar Plastic Base

    MDF-1306

    6

    18

    MDF-1308

    8

    24

    MDF-1312

    12

    36


    Model Code

    Phase

    Way No.

    Incoming

    Outgoings

    Body Thickness

    (mm)

    Mounting

    Type

    Poles

    Rated Current

    MDF-2104

    Single

    4

    2P 100A

    4

    6~60A

    0.8 or 1.0

    Horizontal

    Plug-in Steel Base

    MDF-2106

    6

    6

    MDF-2108

    8

    8

    MDF-2112

    12

    12

    MDF-2304

    Three

    4

    3P

    100A

    12

    1.0 or 1.2

    Vertical

    Bus Bar Steel Base

    MDF-2306

    6

    18

    MDF-2308

    8

    24

    MDF-2312

    12

    36
