Products

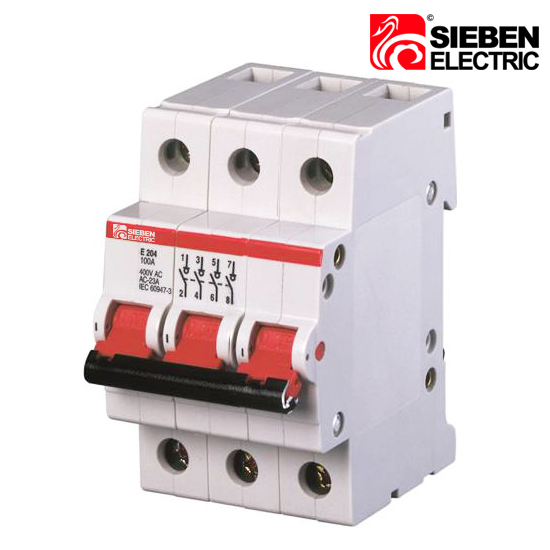

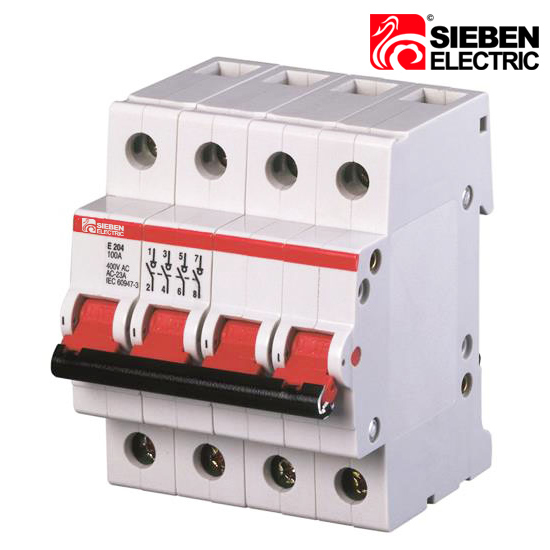

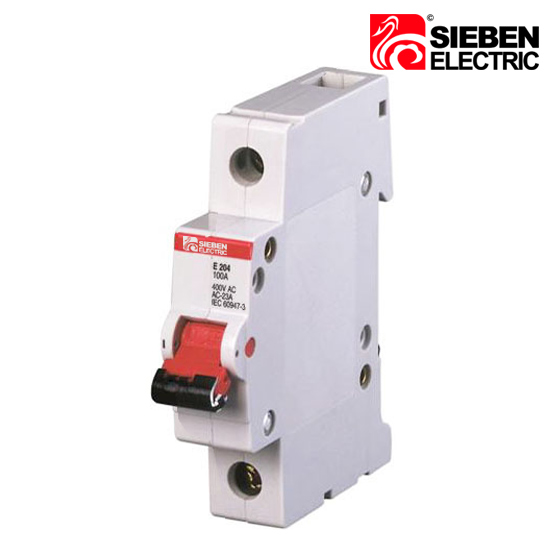

Din-rail Switch-disconnector

Construction & Features

○Capable of switch electric circuit with load

○Provide function of isolation

○Used as main switch for household and similar installation



Features

○Pole no.: 1, 2, 3, 4

○Rated voltage: AC 230/400V

○Rated current(A): 16, 25, 40, 63, 80, 100

○Rated frequency: 50/60Hz

○Rated short-circuit making capacity: 3kA

○Rated withstand current: 1500A within 1sec

○Electro-mechanical endurance: 10000 cycles

○Connection terminal: Screw or pillar terminal with clamp

○Connection capacity: Rigid conductor upto 35mm2

○Installation: On symmetrical 35mm din rail or panel mounting

○Terminal connection height: 21mm
