Application
PDA series plastic consumer unit are designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. The are available in din-rail designs for indoor applications.
Features
○Material: ABS(body), PC(door).
○Protection degree: IP50.
○Knockouts provided on the top and bottom of the enclosure.
○Suitable for rated voltage upto 240/415V.

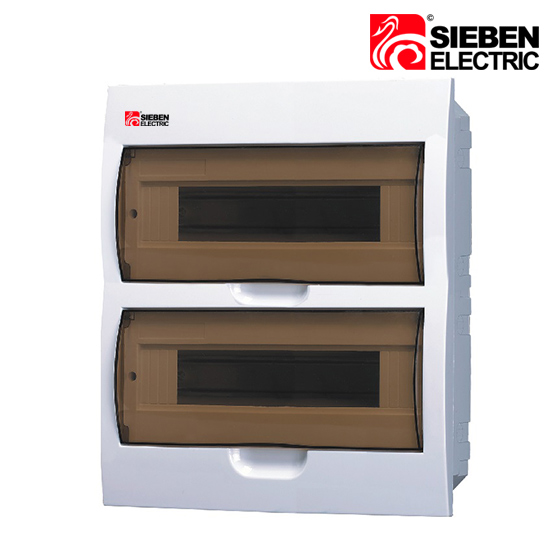

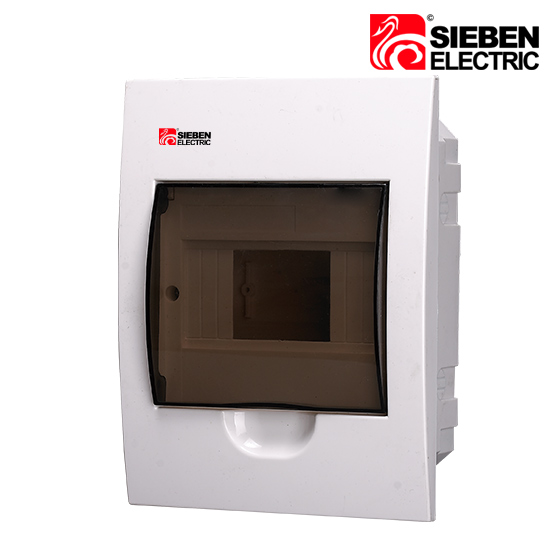

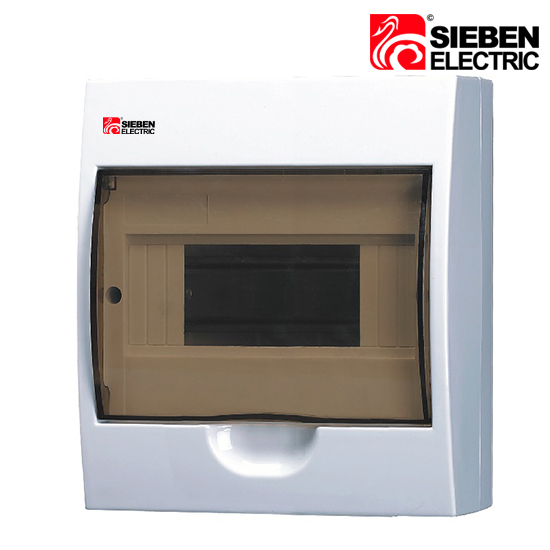

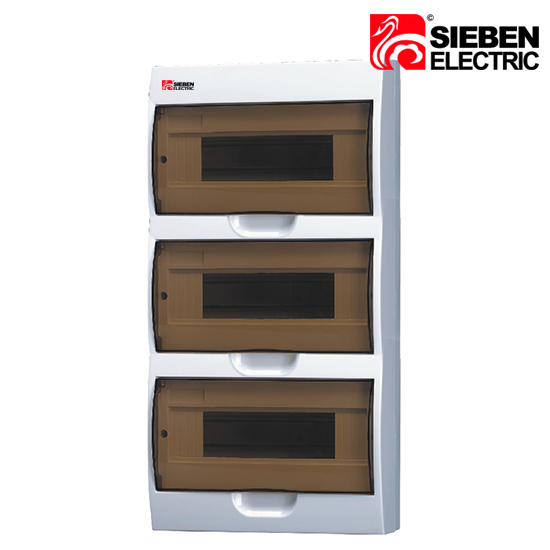

○Flush and surface mounted designs.
○Wider enclosure offers easy wiring and heat dissipation.
Specifications
Model Code | Way | L | W | H | Model Code | Way | L | W | H | L1 | W1 | H1 |
PDA-04S | 4 | 112 | 200 | 95 | PDA-04F | 4 | 136 | 222 | 27 | 115 | 197 | 60 |
PDA-06S | 6 | 148 | 200 | 95 | PDA-06F | 6 | 170 | 222 | 27 | 148 | 197 | 60 |
PDA-08S | 8 | 184 | 200 | 95 | PDA-08F | 8 | 207 | 222 | 27 | 184 | 197 | 60 |
PDA-10S | 10 | 222 | 200 | 95 | PDA-10F | 10 | 243 | 222 | 27 | 222 | 197 | 60 |
PDA-12S | 12 | 256 | 200 | 95 | PDA-12F | 12 | 279 | 222 | 27 | 258 | 197 | 60 |
PDA-15S | 15 | 310 | 200 | 95 | PDA-15F | 15 | 334 | 222 | 27 | 310 | 197 | 60 |
PDA-18S | 18 | 365 | 222 | 95 | PDA-18F | 18 | 398 | 251 | 27 | 365 | 219 | 60 |
PDA-24S | 24 | 271 | 325 | 97 | PDA-24F | 24 | 300 | 345 | 27 | 258 | 310 | 66 |
PDA-36S | 36 | 271 | 462 | 100 | PDA-36F | 36 | 300 | 484 | 27 | 258 | 449 | 66 |
