Construction & Features

SKC series moulded case circuit breaker is one of breakers which adopts international advanced design, manufacture technology to develop.

The rated insulating voltage is 800V, suitable for AC 50/60Hz, rated working voltage upto 690V, rated working current is 12.5A-1600A of circuit and use in distributing electric energy conforming to IEC 60947-2 standard, and non-frequent breaking in the normal conditions, protecting the current & equipment from overload & under voltage.

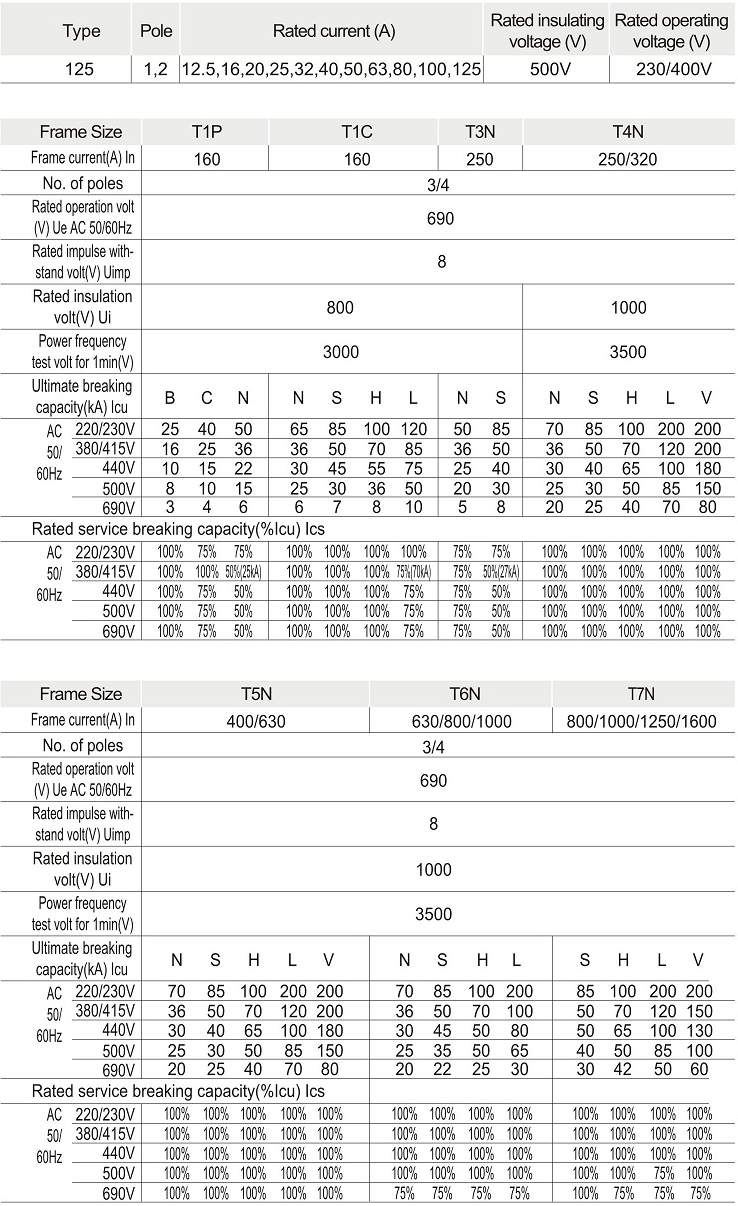

Specifications
