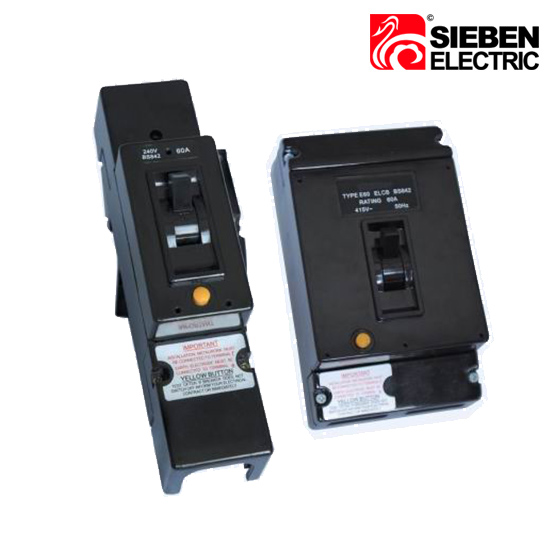

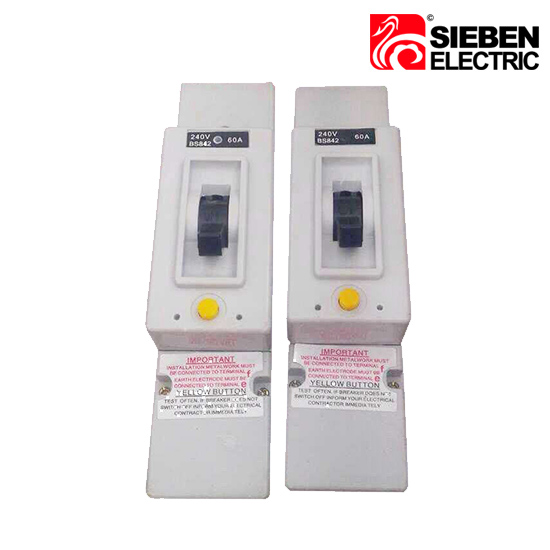

Earth Leakge Circuit Breaker

Construction & Features

○Protection against both earth fault/leakage current

○Applicable to terminal connection

○Auto disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity



Features

○Model type: Electronic, Electro-magnetic

○Residual current characteristics: AC

Pole no.: 2, 4

○Rated voltage: AC 240/415V

○Rated current(A): 16, 25, 40, 63

○Rated residual operating current I△n(A): 0.03, 0.1, 0.3, 0.5

○Rated residual non-operating current I△no: 0.5I△n

○Rated frequency: 50/60Hz

○Tripping duration: Instantaneous tripping ≤0.1s

○Residual tripping current range: 0.5I△n~10I△n

○Electro-mechanical endurance: 6000 cycles

○Connection terminal: Pillar terminal with clamp
