Specifications
Type | Cross Section | Strand Design | Conductor Diameter | Conductor Diameter | Outer Diameter | Rated Voltage | Rated Current |
mm2 | No.XΦ(mm) | mm | Ω/km | mm | VAC/DC | A | |

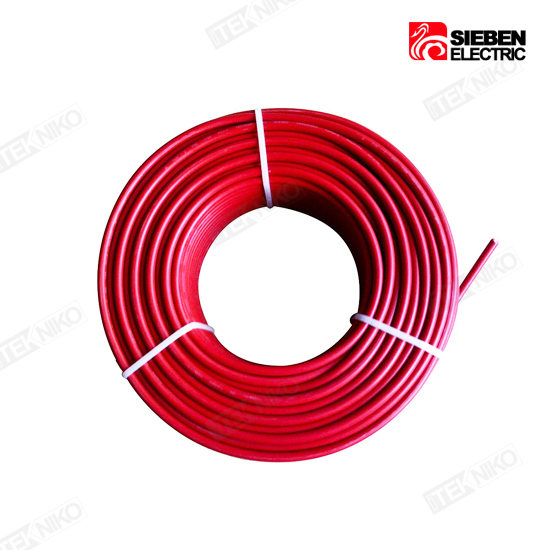

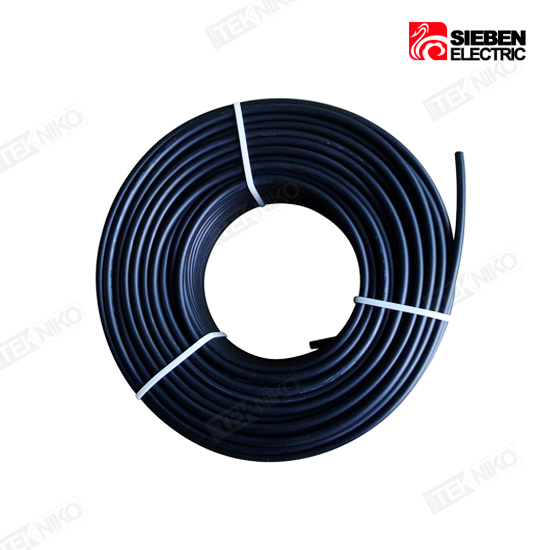

PV-1X1.5mm2 | 1.5 | 30XΦ0.25 | 1.6 | 13.9 | 4.5 | 1000/1800 | 20 |
PV-1X2.5mm2 | 2.5 | 48XΦ0.25 | 2.0 | 9.06 | 5.3 | 1000/1800 | 30 |
PV-1X4mm2 | 4 | 56XΦ0.3 | 2.6 | 4.97 | 6.2 | 1000/1800 | 50 |
PV-1X6mm2 | 6 | 81XΦ0.3 | 3.3 | 3.52 | 7.2 | 1000/1800 | 70 |
PV-1X10mm2 | 10 | 200XΦ0.25 | 4.4 | 2.12 | 8.3 | 1000/1800 | 95 |
PV-1X16 mm2 | 16 | 224XΦ0.3 | 5.2 | 1.95 | 9.5 | 1000/1800 | 140 |

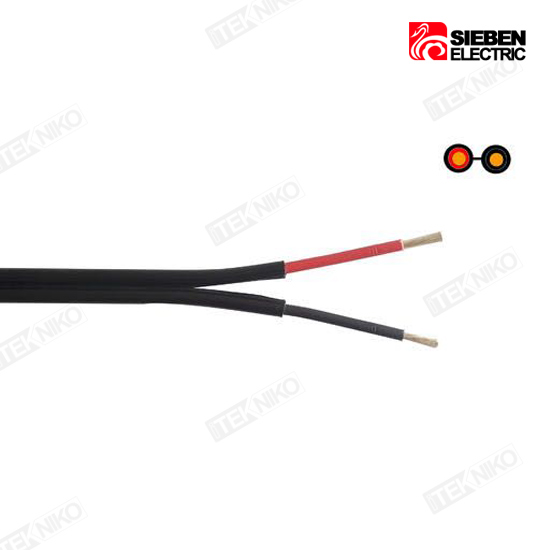

PV-2X1.5mm2 | 1.5 | 30XΦ0.25 | 1.6 | 13.9 | 4.5 | 1000/1800 | 20 |
PV-2X2.5mm2 | 2.5 | 48XΦ0.25 | 2.0 | 9.06 | 5.3 | 1000/1800 | 30 |
PV-2X4mm2 | 4 | 56XΦ0.3 | 2.6 | 4.97 | 6.2 | 1000/1800 | 50 |
PV-2X6mm2 | 6 | 81XΦ0.3 | 3.3 | 3.52 | 7.2 | 1000/1800 | 70 |
PV-2X10mm2 | 10 | 200XΦ0.25 | 4.4 | 2.12 | 8.3 | 1000/1800 | 95 |
PV-2X16mm2 | 16 | 224XΦ0.3 | 5.2 | 1.95 | 9.5 | 1000/1800 | 140 |
